NAME: AgZnO Wire
Can be customized
AgZnO
Product Material
AgZnO
General Description
A high resistance against contact welding characterizes AgZnO materials.They also show a good resistance against arcerosion.Contact resistance of AgZnO tends to be higher than that of AgCdO.AgZnO can be produced by means of Atomizing-sintering-extrusion, mixing-compacting-sintering techniques as well as by internal oxidation. AgZnO materials are environment-protective materials.
Application Scope
Mainly used in circuit breakers,especially in universal circuit breakers.Other fields of application are motor protective switches,residual current circuit breakers and AC relays.

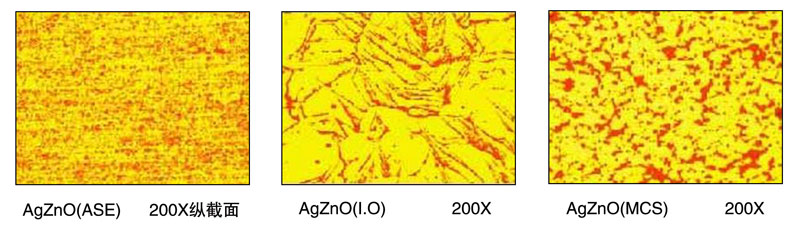

Microstructure
Material Properties
| Tips | AgZnO (ASE) | gZnO (I.O) | AgZnO (MCS) | |||
| ZnO Content (wt.%) | 8±1 | 10±1 | 8±1 | 10±1 | 8±1 | 10±1 |
| Density (g/cm3) | ≥9.65 | ≥9.50 | ≥9.70 | ≥9.55 | ≥9.50 | ≥9.40 |
| Elec.Resistivity (μΩ · cm) | ≤2.30 | ≤2.50 | ≤3.40 | ≤3.50 | ≤2.60 | ≤2.70 |
| Hardness HV (Mpa) | ≥750 | ≥800 | ≥690 | ≥740 | ≥600 | ≥650 |
| Manufacturing process | Atomizing-Sintering-Extrusion | lnternal Oxidation | Mixing-Compcting-Sintering | |||
| Wires | AgZnO (ASE) | |
| ZnO Content (Wt.%) | 8±1 | 10±1 |
| Density (g/cm3) | ≥9.65 | ≥9.60 |
| Elec.Resistivity (μΩ · cm) | ≤2.25 | ≤2.35 |
| Hardness HV (Mpa) | ≥850 | ≥850 |
| Tensile Strength (Mpa) | 285~350 | 285~350 |
| Elongation (%) | 15-25 | 12-20 |
| Manufacturing process | Atomizing-Sintering-Extrusion | |
Product Types
| AgZnO (AES) | AgZnO (I.O) | AgZnO (MCS) | ||||
| ZnO Content (Wt.%) | 8±1 | 10±1 | 8±1 | 10±1 | 8±1 | 10±1 |
| Wires | √ | √ | ||||
| Strips | √ | √ | ||||
| Tips | √ | √ | √ | √ | √ | √ |
| Bimetal strips | √ | √ | ||||
| Rivets | √ | √ | ||||
