Supplier introduction

Wenzhou Saijin Electrical Alloy Co.,Ltd(Saijin for short) specializes in producing all kinds of contact rivets,contact points,contact components,electrical accessories and silver alloy wires.

Sajin use the material Cd free which meets the Eu RoHS&REACH requirement.

Saijin has obtained ISO9001：2015 which assure stable quality.

Tel: +86(577)8521 0099 Fax: +86(577)8523 3668 Email: info@wzsaijin.com

product description

Electrical Silver AuNi/CuNi Bimetal Contact Rivets

Electrical Silver AuNi/CuNi Bimetal Contact Rivets product material is AuNi/CuNi Bimetal Rivets.

Application Scope

AuNi materials have high hardness so they have very high resistance to wearing,and they have better resistance to oxidation and sulfuration than Ag alloys,so they can be used in complicated working circumstances,now they are widely used in oil level indicator sensors of automobiles.

Tolerances

Head	Head	Shank	Shank	Silver Layer		Angle
Diameter	Thickness	Length	Diameter	Thickness
±0.10	±0.05	±0.15	-0.02	S≤0.4：	0.04	±0.2°
		0	-0.1		0
				S＞0.4：	0

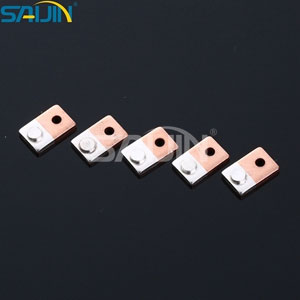

Electric silver copper contact component for connectors

PRODUCT MATERIAL

Surface material: gold, gold alloy, silver, silver nickel, silver copper, silver cadmium oxide, tin oxide, such as silver etc

Substrate: pure silver, silver alloy, copper, brass, phosphor bronze, beryllium copper, zinc white copper, nickel, iron, stainless steel etc

GENERAL DESCRIPTION

Precious metal composite strip - stamping components

Based on different using requirements ，the billet materials with different properties (complex tape and base tape) are made by advanced thermal composite molecular diffusion technology,rolling to be new functional materials. Due to the composite effect and produce very useful comprehensive performance,especially the electrical properties and wear resistance than the overall precious metal (gold, silver) contact materials are significantly improved, in addition to saving precious metals, reduce product costs.

Specifications Type:

Surface material: thickness 0.01 ~ 1.0mm;
Substrate: thickness 0.1 ~ 8.0mm;
Mosaic, double-sided mosaic, full back cover, three composite, side composite, composite with stamping

APPLICATION SCOPE

Mainly used in wall switch, protector, thermostat, micro-motor brush, commutator, micro switch and other conductive components, relays, micro switches, circuit breakers, connectors, tuning And other electronic components of the production.
