Bimetal Contact Supplier recommend

Publish Time: 2019-08-01 10:31 Author: Site Editor Visit: 413

Supplier information

Wenzhou Saijin Electrical Alloy Co.,Ltd(Saijin for short) specializes in producing all kinds of contact rivets,contact points,contact components,electrical accessories and silver alloy wires.

Saijin has obtained ISO9001：2015 which assure stable quality.

Saijin has owned strong R&D department,we were awarded with Zhejiang Province scientific and technological enterprise since 2016.

Tel: +86(577)8521 0099

Fax: +86(577)8523 3668

Email: info@wzsaijin.com

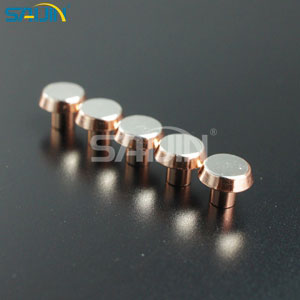

Electrical Silver AgNi/Cu Bimetal Contact Rivets

Electrical Silver AgNi/Cu Bimetal Contact Rivets is made of AgNi/Cu Bimetal Rivets.

Application Scope

Automobile electricalequipments, Household appliances, Relays, Contactors, Temperature controllers, Timers and other electrical appliances.

Tolerances

Head	Head	Shank	Shank	Silver Layer		Angle	Spherical
Diameter	Thickness	Length	Diameter	Thickness			Radius
±0.10	±0.05	±0.15	-0.02	S≤0.4：	0.04	±0.2°	±0.2R
		0	-0.1		0
				S＞0.4：	0

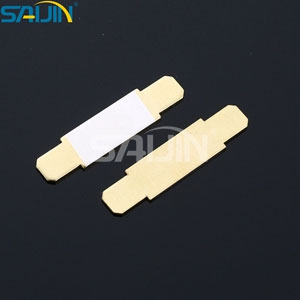

components electrical copper with silver inlay for switch

PRODUCT MATERIAL

Surface material: gold, gold alloy, silver, silver nickel, silver copper, silver cadmium oxide, tin oxide, such as silver etc

Substrate: pure silver, silver alloy, copper, brass, phosphor bronze, beryllium copper, zinc white copper, nickel, iron, stainless steel etc

GENERAL DESCRIPTION

Precious metal composite strip - stamping components

Based on different using requirements ，the billet materials with different properties (complex tape and base tape) are made by advanced thermal composite molecular diffusion technology,rolling to be new functional materials. Due to the composite effect and produce very useful comprehensive performance,especially the electrical properties and wear resistance than the overall precious metal (gold, silver) contact materials are significantly improved, in addition to saving precious metals, reduce product costs.

Specifications Type:

Surface material: thickness 0.01 ~ 1.0mm;
Substrate: thickness 0.1 ~ 8.0mm;
Mosaic, double-sided mosaic, full back cover, three composite, side composite, composite with stamping

APPLICATION SCOPE

Mainly used in wall switch, protector, thermostat, micro-motor brush, commutator, micro switch and other conductive components, relays, micro switches, circuit breakers, connectors, tuning And other electronic components of the production
