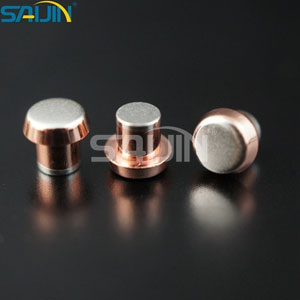

AgZnO/Cu/AgZnO Tri-metal Contact Rivets
Product Material
AgZnO/Cu/AgZnO Tri-metal Contact Rivets
Application Scope
Trimetal rivets are normally used as double side contacts,mainly used in relays, micro switches,button switches and contactors.
Standard Dimensios
| Head | Head | Silver Layer | Shank | Shank | Shank Silver | Spherical | Angle | ||
| Diameter | Thickness | Thickness | Diameter | Length | Layer Thickness | Radius | θ(°) | ||
| (D) | (T) | (S) | (d) | (L) | (H) | (SR) | |||
| Tolerance | ±0.10 | ±0.05 | S≤0.4： | 0.04 | 0 | 0.15 | ±0.04 | ±0.2R | ±2° |
| 0 | |||||||||
| S＞0.4： | 0 | -0.1 | 0 | ||||||
| -0.04 | |||||||||
| Dimension | 2.5-3.0 | 0.8-1.2 | 0.3-0.6 | 1.5 | 1.0-2.5 | 0.5-1.0 | 4-10 | 11° | |
| 3.2-4.0 | 0.8-1.2 | 0.4-0.7 | 2 | 1.2-3.0 | 0.5-1.5 | 6-12 | |||
| 4.0-5.0 | 0.9-1.3 | 2.5 | 1.5-3.5 | 0.8-2.0 | 8-15 | ||||
| 5.0-6.0 | 1.0-1.5 | 3 | 2.0-4.0 | 1.0-2.5 | 10-20 |

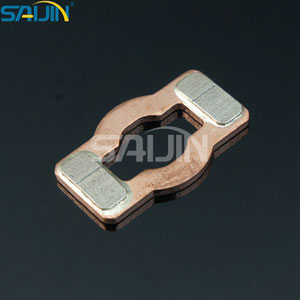

Accessories for Switches with silver inlay for welding
PRODUCT MATERIAL
Cooper, brass, stainless steel, etc.
GENERAL DESCRIPTION
There are mainly three kinds of Electrical Contact Component :
- 1,Riveting Parts : contact is riveted on copper component .
- 2,Welding Parts : sheet contact is welded on copper component .
- 3,Stamping Parts: precious clad metal is stamped into contact bridge component
The manufacturing and test equipments for making Contact Component apparatus such as digital and automotive welding stamping machine, riveting machine, welding Automaton, hi-speed stamper, stamper, coloured metallography ，microscope , 3D coordinator etc. We can develop and manufacture contact component according to customers’ specific requirements and the output can surpass one billion pieces annually.
APPLICATION SCOPE
The electrical contact components can be widely use in switches, relays, thermostats, contactors, disconnector，controllers, timers and other low-voltage apparatus.
